Sanus VXT5 Wall Mount

In today’s world, technology is an integral part of our lives, and with it comes the need for innovative solutions to make our experiences better. One such area where technology has made a significant impact is in home entertainment, with TVs becoming bigger and better in terms of picture quality, features, and functionality. However, with great picture quality comes the need for an excellent viewing experience, which is where wall mounts come in.

A wall mount is a secure and stylish way to display your TV, and the SANUS VXT5 Wall Mount is a popular option that has gained a reputation for its range of features and versatility. Whether you’re a movie buff, sports fan, or gamer, the SANUS VXT5 Wall Mount has features that can enhance your viewing experience. For instance, it offers rotational ability, which provides more control and flexibility in finding the best viewing angle for your TV. Its wide range of supported VESA patterns ensures that it can fit a wide range of TV models, and its weight capacity of up to 180 lbs or 81.65kg means it can support a wide range of TV sizes.

In addition, the SANUS VXT5 Wall Mount is made of quality materials that ensure durability and longevity, and its slim profile allows your TV to sit close to the wall, creating a sleek and modern look in your room. With all the necessary hardware and tools included, it’s also easy to install, making it a great option for anyone looking to enhance their TV viewing experience.

Expert Opinion: A Review of the SANUS VXT5

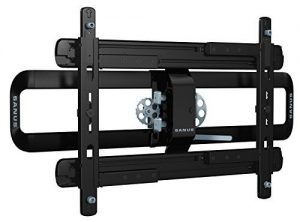

41cUtU0eVKL

Available on Amazon



Pros
  • Wide range of supported VESA patterns.
  • Quality materials.
  • Ability to rotate.
Cons
  • The degree of tilt could be wider.



Features Details
Rotational Ability Allows for rotation, providing more control and flexibility in finding the best viewing angle for your TV.
Weight Capacity Up to 180lbs or 81.65kg. Supports a wide range of TV sizes, ranging from 46 inches to 90 inches or 116.84cm to 228.60cm.
VESA Compatibility Supports a wide range of VESA patterns, including VESA 100 x 100, VESA 200 x 200, VESA 300 x 300, VESA 400 x 400, and many more.
Durable Materials Made of quality materials that ensure it can withstand the weight of your TV and last for a long time.
Easy to Install Comes with all the necessary hardware and tools needed for installation. The installation process is straightforward and easy to follow.
Slim Profile Has a slim profile that allows your TV to sit close to the wall, creating a sleek and modern look in your room.
Tilt Functionality Offers a small degree of tilt, allowing you to adjust the angle of your TV for optimal viewing.



Specifications Details
Product Brand SANUS
Model Code VXT5
Wall Mount Width 31.81″ / 80.80cm
Wall Mount Height 3.25″ / 33.66cm
Wall Mount Depth 3.34″ / 8.48cm
Wall Mount Weight 26.63lbs / 12.08kg
TV Size Range 46″ – 90″ / 116.84cm – 228.60cm
Maximum TV Weight 180lbs / 81.65kg
Degree of Tilt 2° / -2°

Supported VESA Patterns:

  • VESA 100 x 100
  • VESA 100 x 100
  • VESA 100 x 200
  • VESA 200 x 100
  • VESA 200 x 200
  • VESA 200 x 300
  • VESA 200 x 400
  • VESA 300 x 100
  • VESA 300 x 200
  • VESA 300 x 300
  • VESA 300 x 400
  • VESA 400 x 100
  • VESA 400 x 200
  • VESA 400 x 300
  • VESA 400 x 400
  • VESA 500 x 100
  • VESA 500 x 200
  • VESA 500 x 300
  • VESA 500 x 400
  • VESA 600 x 100
  • VESA 600 x 200
  • VESA 600 x 300
  • VESA 600 x 400

Tools You Will Need For Installation

To make things as easy as possible you are going to need some tools. Below are the needed tools to properly set the wall mount up. Most tools are provided inside the package the wall mount comes in, but if not I made a simple chart to find what you will need to make the install go smoothly.

  • 7/32″ Drill Bit
  • drill-bit
  • 3/8″ Drill Bit
  • 1/2″ Socket Wrench
  • Electric Drill
  • Hammer
  • Phillips Head Screwdriver
  • Tape Measure

How To Install The SANUS VXT5

At this point, things could not be easier, unless you had someone come do the installation for you. It’s as simple as connecting the wall mount bracket to the back of the TV. This will include the proper VESA pattern and the rolling piece of the wall mount.

Then you mount the wall plate to the wall in the position you see best. A level helps a bunch during this step. Then lastly, connect the wall mount bracket to the wall plate. You’ll press into the bottom of the TV against the wall plate until you hear a click. Then you’re all set.

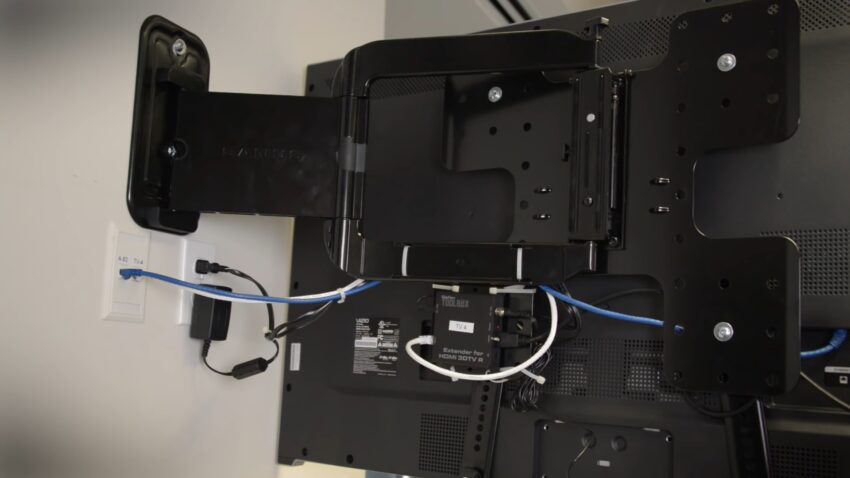

Step 1 – Wall Bracket

Wall Bracket

  • 1-1 Find the TV screws and insert them into the back of the TV.
  • 1-2 Determine if the provided spacers are needed.
  • 1-3 Measure your TV’s VESA pattern
  • 1-4 Using the correct bracket, attach it to the VESA holes on your TV.

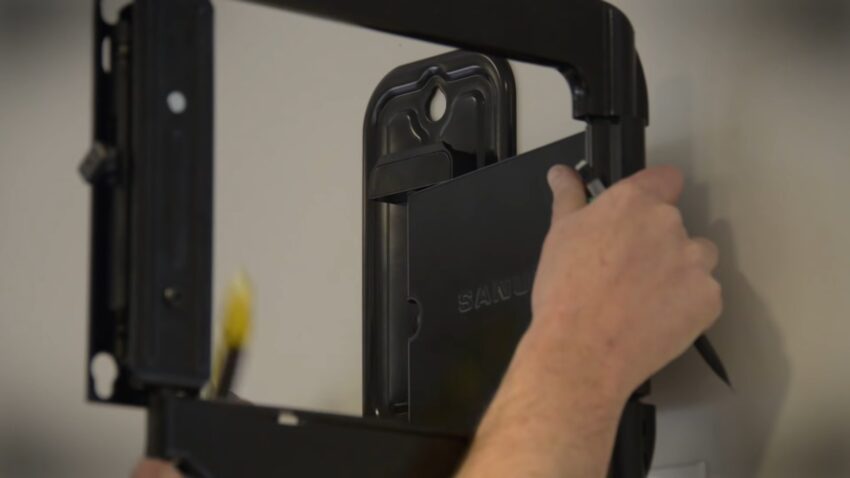

Step 2 – Wall Plate

Wall Plate Sanus

  • 2-1 If using the stud finder, find the studs in your wall
  • 2-2 If you have concrete walls, measure and apply wall anchors.
  • 2-3 Once holes are made or anchored, attach wall plate to the wall

Step 3- Attach Bracket to Wall Plate | HEAVY! You may need assistance with this step.

3-1 Final Step

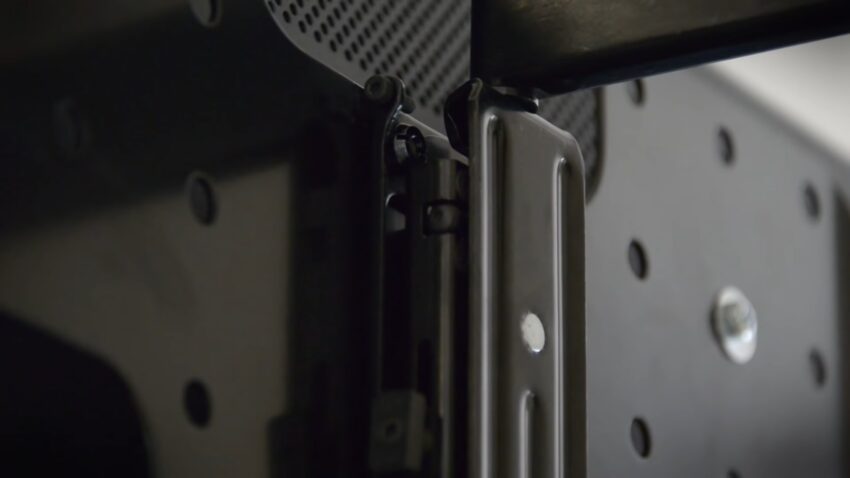

Locking Wall Mount

The locking tab needs to be in the unlocked position before attaching the TV to the wall plate. Once the TV is on the wall plate, the locking tab needs to be in a locked position.

Pros
  • Rotational ability provides more control and flexibility in finding the best viewing angle for your TV.
  • Wide range of supported VESA patterns, ensuring compatibility with a wide range of TV models.
  • Made of quality materials that ensure durability and longevity.
  • Can support a wide range of TV sizes, ranging from 46 inches to 90 inches.
  • Easy to install with all necessary hardware and tools included.
  • Slim profile allows your TV to sit close to the wall, creating a sleek and modern look in your room.
Cons
  • Degree of tilt could be wider, with only a 2° / -2° range offered.



Overall, the SANUS VXT5 Wall Mount offers a great combination of features, durability, and ease of use at a reasonable price point. Its rotational ability and wide range of supported VESA patterns make it a versatile option for many TV models and viewing setups. However, those looking for more tilt flexibility may want to consider other wall mount options.

FAQ

Can I install the SANUS VXT5 Wall Mount by myself, or do I need professional installation?

The SANUS VXT5 Wall Mount is designed to be installed by the homeowner and comes with all necessary hardware and tools. However, if you are unsure about your installation abilities, it may be best to seek professional installation.

How far does Wall Mount extend from the wall?

The SANUS VXT5 Wall Mount has a slim profile that allows your TV to sit close to the wall, with a depth of 3.34″ / 8.48cm.

Does the SANUS VXT5 Wall Mount come with a warranty?

Yes, the SANUS VXT5 Wall Mount comes with a limited 10-year warranty.

Can it be used for outdoor TVs?

The SANUS VXT5 Wall Mount is designed for indoor use only and should not be used for outdoor TVs.

Will the SANUS VXT5 Wall Mount fit my specific TV model?

The SANUS VXT5 Wall Mount supports a wide range of VESA patterns, which should be compatible with most TV models. However, it’s always a good idea to check your TV’s VESA pattern before purchasing to ensure compatibility.

Can I adjust the rotational angle?

Yes, the SANUS VXT5 Wall Mount can be rotated to find the best viewing angle for your TV. However, the degree of rotation is limited by the size of your TV and the location of the wall mount.
